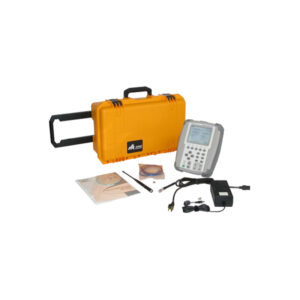

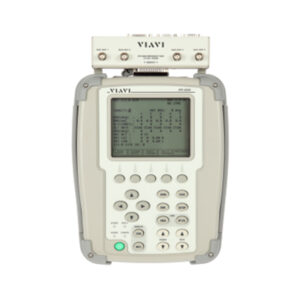

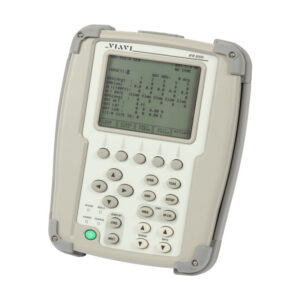

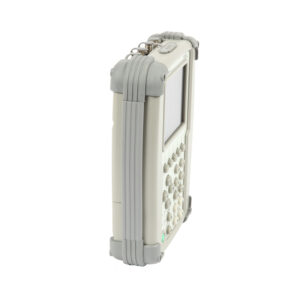

IFR6000 Transponder Test Set

The IFR 6000 is a compact, lightweight and weatherproof unit designed for testing transponder modes A/C/S, 1090 MHz ADS-B and 978 MHz UAT, TCAS I and II, and DME. The IFR 6000 features an extremely easy to use interface where every parameter the user commonly needs to view is displayed on screen.

The IFR 6000 is the only ramp test set capable of verifying all aspects of next generation transponder testing, including ADS-B testing, FIS-B and TIS-B testing. Most tests can be completed without leaving the main user screens. This simplifies the line technician’s testing task.

Category: Avionics

Individual test modes: Mode S, ATCRBS Transponder, DME, TCAS, TIS, ADS-B MON/ ADS-B GEN (DO-260A/B), 978MHz UATLarge keys for gloved operationSimple user interfaceLightweight and compact at 8 lbs.Battery operation 6 hours plus between chargesFully FAR part 43 appendix F compliantTransponder Auto-TestData dump of transponder test results to PCElementary and Enhanced Surveillance parameters (DAP’s)Transponder level automatically determined and capability checked to avoid nuisance Auto-Test failuresComprehensive GICB testConfiguration files for different classes of transponderComprehensively tests any DME channelincluding track sensitivityUser selectable TCAS scenariosTCAS fast scenario feature uses Auto Altitude and Converge to ensure automatic collision at zero rangeOver-the-air or direct-connect operationParametric measurements including TX power and frequencyUSB flash drive software update via web site downloadOptional ADS-B capabilities are DO-260A/B compliantOptional TCAS and 978 MHz UAT capabilityOptional testing using UC-584 Coupler
