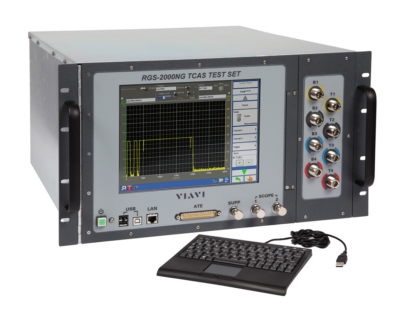

RGS2000NG NextGen TCAS Test Set

  • Software-driven design allows for field updates for adding new features, capability or modifications due to industry changes
  • TCAS and ADS-B Target Generator
  • Simulates 32 dynamic/400 static intruders
  • ADS-B squitter encode/decode
  • More test capability than any tester in the market, all packed into one box
  • Pulse and frequency measurement Transponder test option for Modes A, C, S
  • Optional Command set emulation for SDX-2000, ATC-1400A and S-1403DL
  • 10.4 inch touch screen LCD display for operator control of all test set capabilities or can be remotely controlled via GPIB or Ethernet
  • Four port antenna simulation
  • Hybrid surveillance
  • Six independent transmitters and two receivers
Category: Tag:

Description

The RGS-2000NG TCAS Test Set is an RF signal generator/receiver for testing TCAS (Traffic Alert and Collision Avoidance System) with an option available for testing transponder LRUs. The RGS-2000NG was designed with modern software-driven digital modulation technology and is the RGS-2000 replacement for engineering development, design validation, manufacturing and return-to-service testing.
