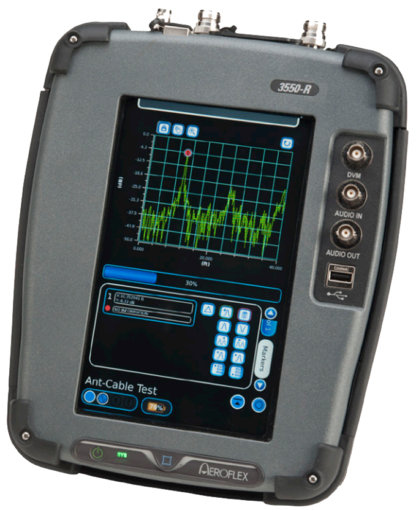

3550R Touch Screen Portable Radio Test Set

The 3550R is the first truly portable touch-screen radio communication test system. The 3550R takes radio and repeater site testing to the next level with a quantum leap in an easy to use, integrated test system for complete radio receiver and transmitter performance testing, cable fault and antenna system analysis. With its ultra-responsive resistive touch-screen, the 3550R brings a whole new experience to RF testing.

  • Next generation touch-screen operation
  • Internal battery provides 4.5 hours of true portability on one charge
  • Super light magnesium alloy – 8.3 lbs/3.75 kg weight
  • Complete support for AM, FM, DMR, P25, NXDN™, dPMR and ARIB T98
  • Define your own test screens and then save for future use
  • 0º to 50º C operating range
  • 0.15 ppm timebase with exclusive “Freq-Flex” external flexible frequency reference
Category: Tags: , ,

Additional information

3550R RTS

Multi-Language support includes Simplified and Traditional Chinese, Spanish, Portuguese, Korean, Japanese, German, French, etc.

Complete RF Transmitter Testing: With integrated RF power, RSSI, frequency error and modulation meters, the 3550R provides complete analysis of AM, FM, P25, DMR, dPMR, NXDN, and ARIB T98 radio systems.

Downloads

3550R Product Brief

3550R Data Sheet
