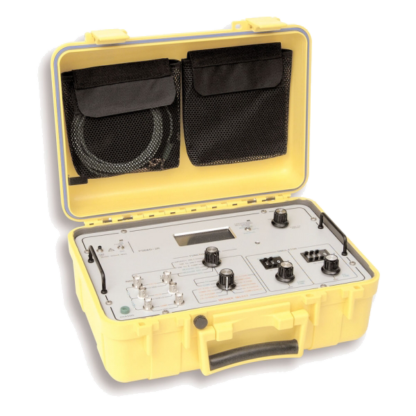

The PSD60-2R Fuel Quantity Test Set is an accurate, stable unit designed to test AC capacitance type fuel quantity measurement systems and their line replaceable components. The PSD60-2R, along with aircraft-specific interface units or cables*, provides complete capability to test most aircraft with AC capacitance systems.
The PSD60-2R performs these functions
- Measurement of total tank capacitance, individual tank units and compensators
- Simulation of capacitance for indicator calibration
- Simulation of compensator capacitance value for dry calibration
- Measurement of the insulation resistance of tank units and aircraft harness
- Measurement of coax center conductor to shield for fault isolation
- Display of capacitance resolution to 0.00 pF for accurate individual tank unit test¬ing (to 199.99 pF)
